CISCO Configuring Dynamic Routing - Open Shortest Path First (OSPF) Routing

Open Shortest Path First (OSPF) is a link state routing protocol. This means, unlike RIP (which is based on the number of hops) OSPF uses a link state routing algorithm to understand the wider topology.

OSPF will ultimately gather information from available routers and construct a network map. The cost metric (what OSPF uses to make its routing decision) is derived from an interfaces bandwidth. A cost is established using a reference bandwidth of 100mbps.

Therefore, if we have a 20mbps interface the cost is 100/20 = 5. This will be done for all interfaces across the network within the area. The final point to note is Autonomous System (AS) and areas; in OSPF an AS is simply a collection of IP networks that all share a routing strategy. An area is a logical group of routers and links that ultimately make up the AS. There can be many areas in an AS.

Lab setup

1. GNS3 as the network emulation software. topology 2. I have my 3 PC's (Virtual PC's). 3. 3x CISCO routers on IOSv 15.7 (Router - Cisco Modelling Labs Personal $199).

IP Schema

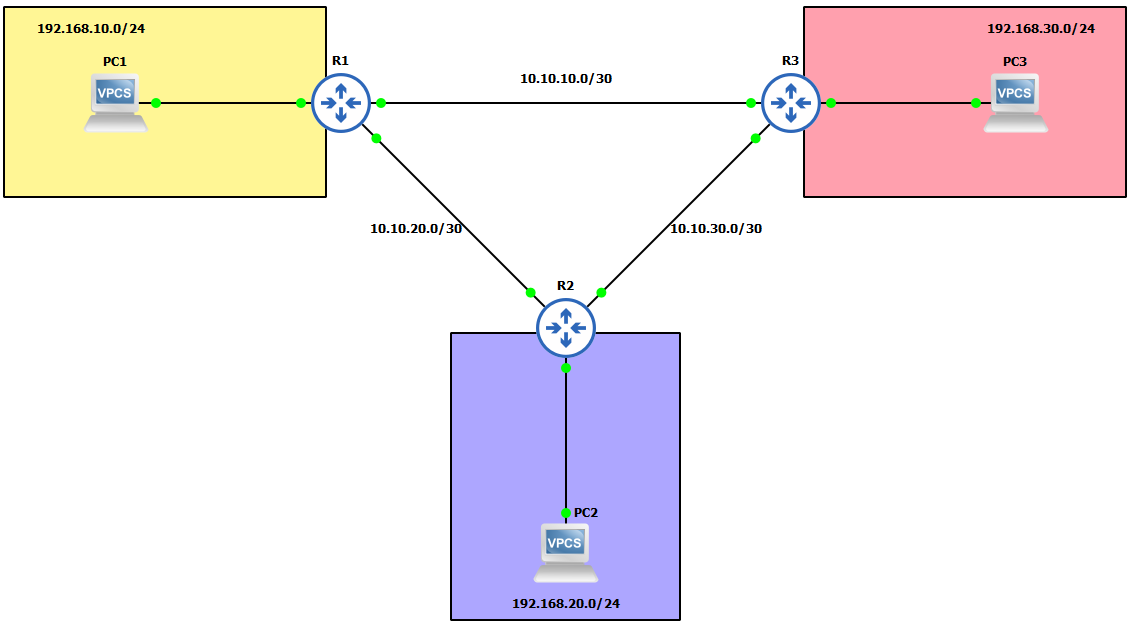

The IP schemas used in this lab will be: 1. 3x LAN subnets being, and 2. 3x Router-to-router subnets being, and

IP addressing interfaces and Virtual PC's

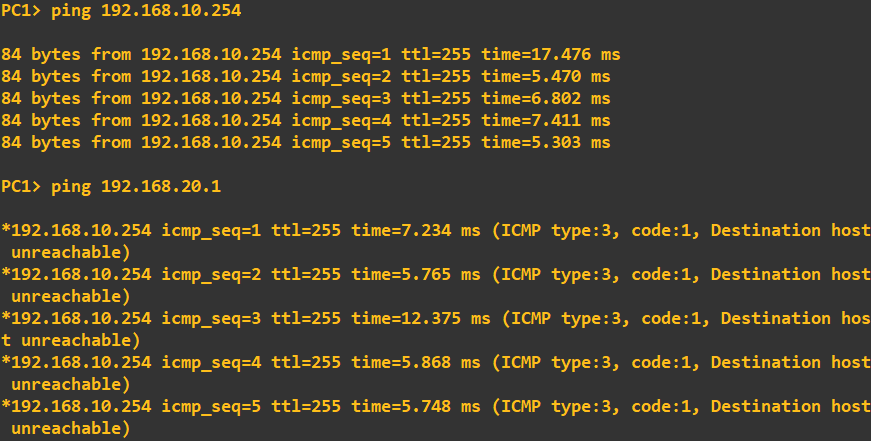

First, let's IP address the Virtual PC's: pc1ip pc2ip pc2 I am now going to IP address the router interfaces attached to each of these LAN's. To make things easier to follow, I have attached interface gi0/0 of each of the routers to the LAN. The address I am going to assign to each of these interfaces is the last address in the subnet. r1gi00ip r2gi00ip r3gi00ip Finally, lets IP address the interfaces connected on the router-to-router links. Router 1: r1gi01ip r1gi02ip Router 2: r2gi01ip r2gi02ip And finally router 3: r3gi01ip r3gi02ip Before we start configuring OSPF, I will do a quick ping check to ensure no connectivity apart from that to default-gateway exists: pingfailed

Configuring OSPF

I am going to configure OSPF utilising some authentication (this will help mitigate the injection of rogue OSPF traffic). To do this I am going to use HMAC-SHA-256 in combination with a password. A point to note, depending on what version of OSPF you are using will dictate what type of authentication you can utilise as some versions are restricted to MD5 and plain-text.

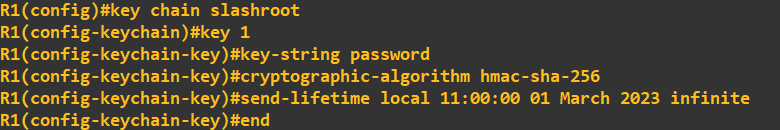

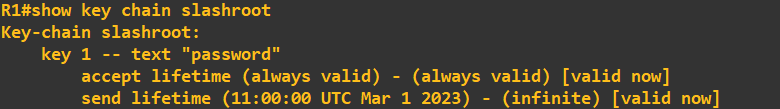

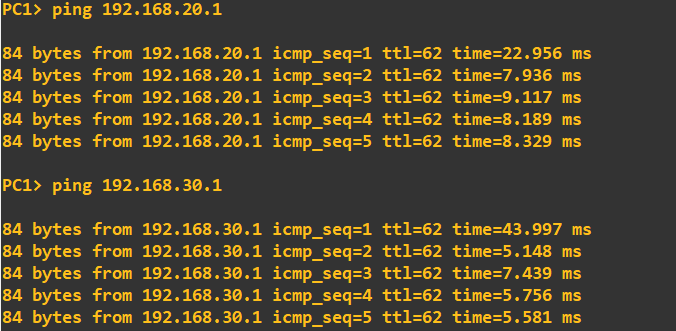

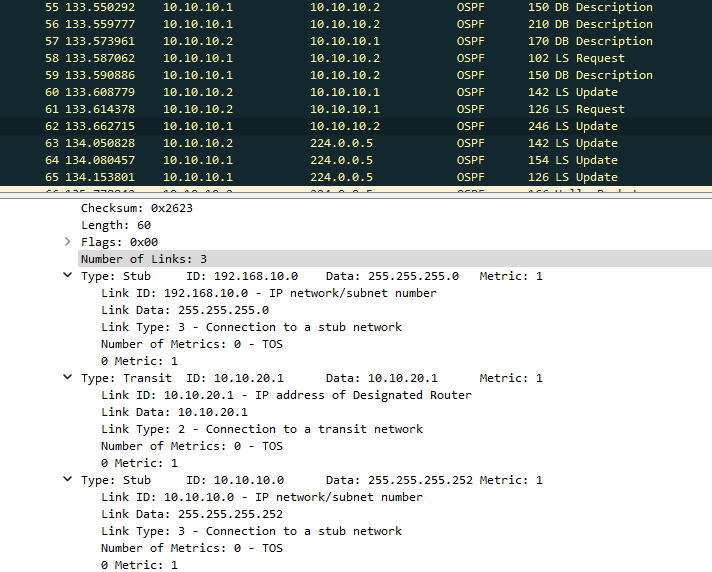

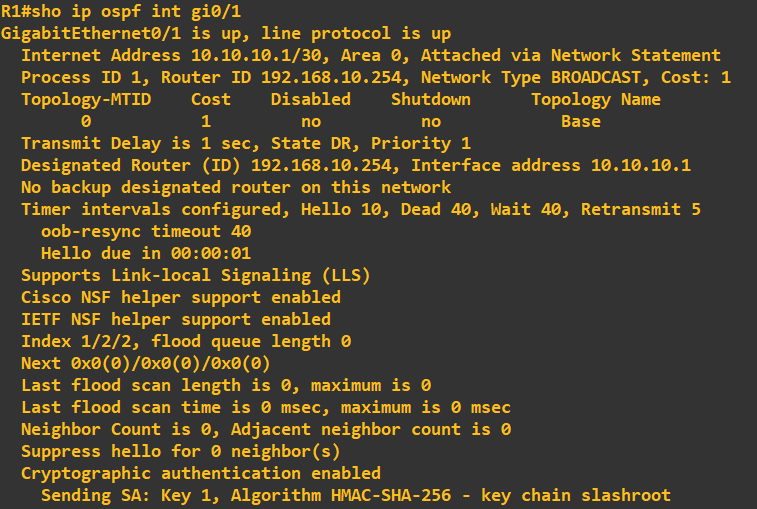

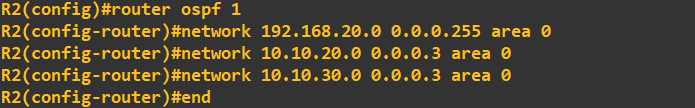

I am using OSPFv2 which allows for: "The OSPFv2 Cryptographic Authentication feature allows you to configure a key chain on the OSPF interface to authenticate OSPFv2 packets by using HMAC-SHA algorithms. You can use an existing key chain that is being used by another protocol, or you can create a key chain specifically for OSPFv2" - CISCO manual. To define a key chain and key to use, I first to need to create it (I am doing the new few steps on R1, but all routers will need the same configuration to share OSPF information): keycreation This has created a key chain called 'slashroot' and defined a key 1 with the value 'password'. The algorithm I have chosen as discussed above is SHA-256 with HMAC. The send lifetime defines a period in which the key can be used, in this case from 11:00:00 01 March 2023 with no end time. To confirm it has been accepted I will view the key status: keystatus To allow OSPF to use this key chain as its authentication parameter we need to apply it to the interfaces being used by OSPF or alternatively apply the key chain to the OSPF area. We have not defined any areas as of yet so what I am going to do is apply the key chain to the interface: ospfauthtointgi01 ospfauthtointgi02 OSPF will now use this key chain for OSPF traffic on that interface. We can check this by looking at our OSPF configuration. Notice how the following command fails at this stage as we have not actually enabled OSPF yet. ospfnotenabled I will correct this now and enable OSPF routing as well as advertise some networks. ospfnetworks1 ospfnetworks2 The above commands have done 3 things. 1. It has created an OSPF group 1 (this is information that is relevant locally to the router only). 2. It has advertised 3 networks to an OSPF area of 0 (a logical grouping to share networks, this will need to be shared with other routers in the area). 3. Enabled OSPF. To check our OSPF configuration we should be able to type the same command as above and receive an output: ospfenabledhmacsha You will notice at the bottom of the configuration our key chain is displayed as confirmation it is being utilised. It is worth having a look at the settings before moving on to ensure you fully understand what is going on - in particular the timings of Hello, Dead, Wait and Retransmit. The Hello message uses multicast address, is sent every 10 seconds and has the purpose of identifying OSPF neighbours. You can see this in Wiseshark when looking at the line connected to an OSPF enabled interface: ospfhello All we need to do at this stage is put the same configuration information into each of the other two routers (advertising their respective networks). I do this next on router 2: router2keychain Apply the key chain to OSPF authentication on the interfaces: r2authentication And finally advertise some networks: r2networks The first thing you will notice after entering a configuration on another router is a status message will pop-up: neighbour What this is telling us, is that an OSPF neighbour partnership has been estbalished with the router ID This is router 1. We just didn't change the router ID when we set OSPF up so it auto populated this with the first interfaces ID on R1 i.e. We can view OSPF neighbours using the following command: neighbourestablished The final step is to complete the topology and enter the same configuration into router 3. Once done, we can view the neighbour relationships on router 3 to see the following: r3neighbour We can also view the routes that router 3 now knows through OSPF using the following command: r3routes It worth checking what all this looks like in Wireshark to fully understand the OSPF messaging. Here you can see the 'update' and 'description' messages being transmitted between router 1 and router 3: wiresharkospf At this point we should be ready to go. As a final check I will ping the and networks from PC1, which is in the network: pingsuccess
